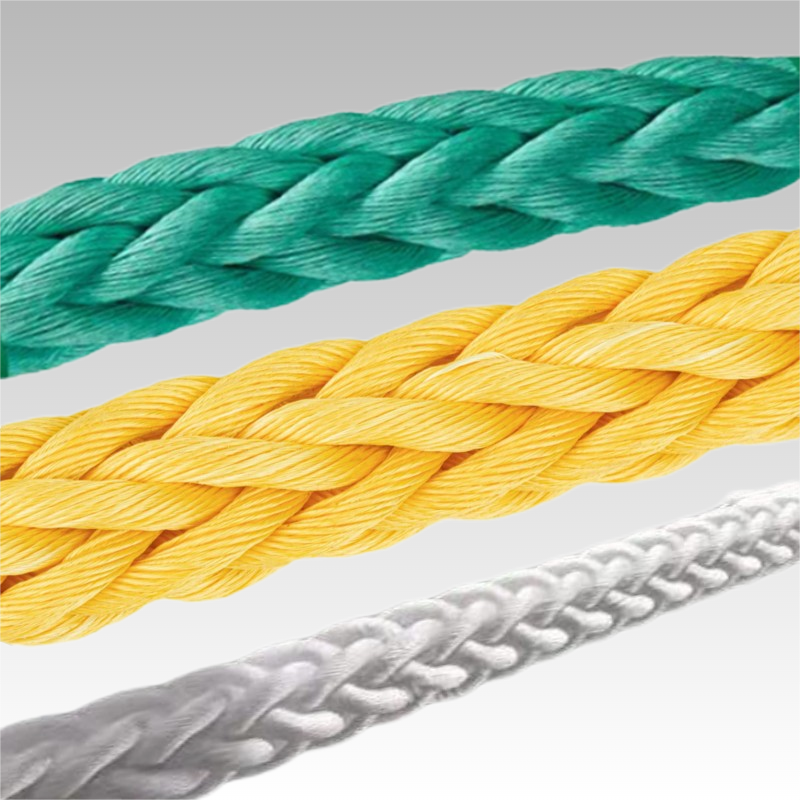

LDPPMULTI-12 is a 12-strand polypropylene multifilament rope. Polypropylene’s buoyancy and water absorption – repellent properties make it perfect for aquatic use,while maintaining flexibility in wet conditions.
However, Material properties include low melting temperature and gradual strength degradation under sustained loads.
| Size | Weight | Breaking Strength | ||||
| Dia(inch) | Cir (inch) | Dia(mm) | 220m(kg) | 600ft(lb) | ton | KN |
| 1-1/8 | 3-112 | 28 | 85 | 156.00 | 13.50 | 132 |
| 1-5/16 | 4 | 32 | 112 | 205.00 | 16.70 | 163 |
| 1-7/16 | 4-1/2 | 36 | 142 | 260.00 | 20.00 | 198 |
| 1-5/8 | 5 | 40 | 179 | 328.00 | 24.70 | 242 |
| 1-3/4 | 5-1/2 | 44 | 210 | 385.00 | 29.00 | 286 |
| 1-15/16 | 6 | 48 | 250 | 458.00 | 34.30 | 336 |
| 2-1/8 | 6-1/2 | 52 | 290 | 531.00 | 39.30 | 385 |
| 2-1/4 | 7 | 56 | 320 | 586.00 | 44.00 | 430 |
| 2-3/8 | 7-1/2 | 60 | 375 | 687.00 | 50.50 | 495 |
| 2-112 | 8 | 64 | 425 | 779.00 | 57.00 | 558 |
| 2-7/8 | 9 | 72 | 540 | 989.00 | 72.50 | 710 |
| 3-1/4 | 10 | 80 | 660 | 1209.00 | 87.60 | 858 |
| 3-1/2 | 11 | 88 | 800 | 1466.00 | 101.00 | 985 |
| 3-3/4 | 12 | 96 | 950 | 1740.00 | 118.00 | 1156 |
| 4-1/8 | 13 | 104 | 1120 | 2052.00 | 135.00 | 1326 |
| 4-1/2 | 14 | 112 | 1300 | 2382.00 | 156.00 | 1530 |
| 4-3/4 | 15 | 120 | 1490 | 2730.00 | 180.00 | 1760 |
| 5-1/8 | 16 | 128 | 1680 | 3078.00 | 202.00 | 1980 |
| 5-3/8 | 17 | 136 | 1900 | 3481.00 | 228.00 | 2230 |
| 5-11/16 | 18 | 144 | 2120 | 3885.00 | 255.00 | 2500 |
| 6 | 19 | 152 | 2370 | 4342.00 | 284.00 | 2780 |
| 6-3/10 | 20 | 160 | 2570 | 4778.00 | 306.00 | 3000 |
| ±5% tolerance according to ISO2307 | ||||||
