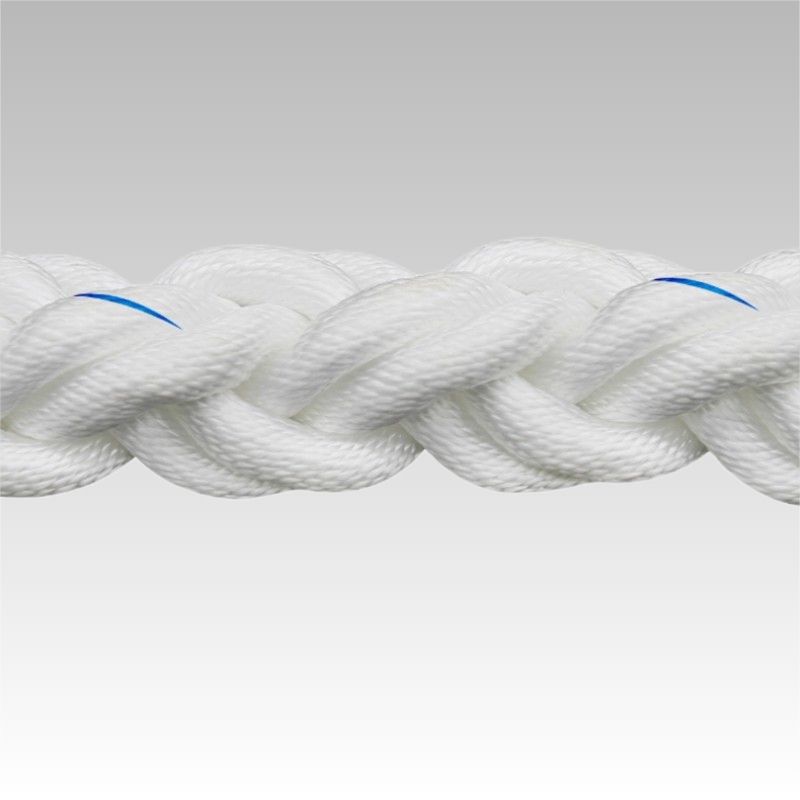

LDPA-8 is 8-Strand Polyamide Rope.
8-strand construction that is heat and flex-fatigue resistant and works well around sheaves and winches. It is easy to splice,very high tensile strength, very low stretch, low creep, and excellent resistance to heat.Comes standard with urethane coating.High Temperature, Heat Resistant High Strength & Cut Resistant.
LDPA-8
Product Code
242
Specific Gravity
1.13
Fiber (Core/cover)
Polyamide
Splice
8-Strand
Department buoy rope slip/Mooring line/Ship to Buoy Mooring System/Super sized commercial vessel/Tug&Towing line/Winch Line/Wire Rope Replacement
- Double twisted construction
- Specific gravity : 1.13
- Elongation: 33% at break
- Melting point: 220℃
- Good resistance to chemicals and corrosion
- Superior abrasion resistance
- Excellent shock absorption
| Size | Weight | Breaking Strength | ||||
| Dia(inch) | Cir (inch) | Dia(mm) | 220m(kg) | 600ft(lb) | ton | KN |
| 1-1/8 | 3-1/2 | 28 | 98 | 180.00 | 14.00 | 137 |
| 1-5/16 | 4 | 32 | 130 | 238.00 | 18.00 | 178 |
| 1-7/16 | 4-1/2 | 36 | 168 | 308.00 | 22.70 | 222 |
| 1-5/8 | 5 | 40 | 205 | 376.00 | 27.00 | 264 |
| 1-3/4 | 5-1/2 | 44 | 250 | 458.00 | 32.00 | 315 |
| 1-15/16 | 6 | 48 | 290 | 531.00 | 38.00 | 372 |
| 2-1/8 | 6-1/2 | 52 | 345 | 632.00 | 44.00 | 430 |
| 2-1/4 | 7 | 56 | 405 | 742.00 | 49:00 | 479 |
| 2-3/8 | 7-1/2 | 60 | 460 | 845.00 | 55.60 | 545 |
| 2-1/2 | 8 | 64 | 525 | 962.00 | 62.00 | 610 |
| 2-7/8 | 9 | 72 | 660 | 1209.00 | 70.00 | 683 |
| 3-1/4 | 10 | 80 | 820 | 1502.00 | 95.00 | 932 |
| 3-1/2 | 11 | 88 | 990 | 1814.00 | 118.00 | 1155 |
| 3-3/4 | 12 | 96 | 1170 | 2143.00 | 136.50 | 1337 |
| 4-1/8 | 13 | 104 | 1380 | 2528.00 | 163.00 | 1600 |
| 4-1/2 | 14 | 112 | 1600 | 2931.00 | 186.00 | 1820 |
| 4-3/4 | 15 | 120 | 1850 | 3389.00 | 213.00 | 2090 |
| 5-1/8 | 16 | 128 | 2136 | 3913.00 | 245.00 | 2400 |
| 5-3/8 | 17 | 136 | 2426 | 4444.00 | 268.00 | 2625 |
| 5-11/16 | 18 | 144 | 2745 | 5029.00 | 301.00 | 2950 |
| 6 | 19 | 152 | 3068 | 5621.00 | 330.00 | 3240 |
| 6-3/10 | 20 | 160 | 3385 | 6201.00 | 361.00 | 3540 |
| ±5% tolerance according to ISO2307 | ||||||
