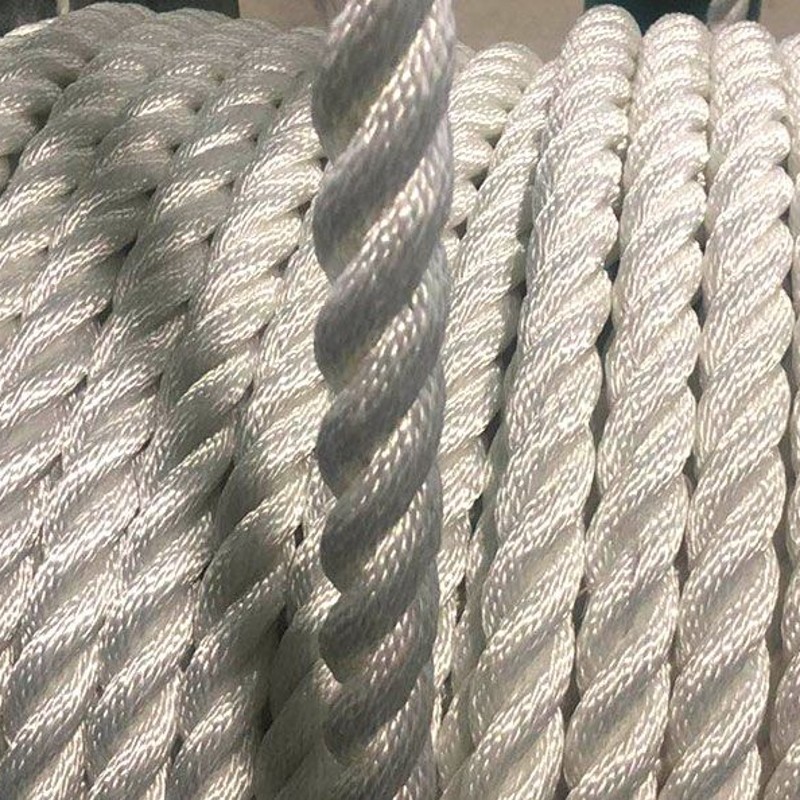

LDPA-3 is 3-Strand Polyamide Rope.
3-strand construction that is heat and flex-fatigue resistant and works well around sheaves and winches. It is easy to splice,very high tensile strength, very low stretch, low creep, and excellent resistance to heat.Comes standard with urethane coating.High Temperature, Heat Resistant High Strength & Cut Resistant.
LDPA-3
Product Code
241
Specific Gravity
1.13
Fiber (Core/cover)
Polyamide
Splice
3-Strand
Department buoy rope slip/General industrial and marine use/Mooring line
- Specific gravity : 1.13
- Elongation: 33% at break
- Melting point: 210℃
- Good resistance to chemicals and corrosion
- Superior abrasion resistance
- Excellent abrasion resistance
| Size | Weight | Breaking Strength | |||
| Cir (inch) | Dia(mm) | 220m(kg) | 600ft(lb) | ton | KN |
| 1/2 | 4 | 2.0 | 3.70 | 0.29 | 2.8 |
| 3/4 | 6 | 4.5 | 8.30 | 0.68 | 6.6 |
| 1 | 8 | 8.0 | 14.70 | 1.23 | 12 |
| 1-1/4 | 10 | 13 | 24.00 | 1.84 | 18 |
| 1-1/2 | 12 | 18 | 33.00 | 2.65 | 26 |
| 1-3/4 | 14 | 24 | 44.00 | 3.68 | 36 |
| 2 | 16 | 33 | 60.50 | 4.70 | 46 |
| 2-1/4 | 18 | 41 | 75.00 | 6.00 | 59 |
| 2-1/2 | 20 | 50 | 92.00 | 7.40 | 72 |
| 2-3/4 | 22 | 61 | 112.00 | 8.90 | 87 |
| 3 | 24 | 73 | 130.00 | 10.60 | 104 |
| 3-1/4 | 26 | 86 | 158.00 | 12.30 | 121 |
| 3-1/2 | 28 | 101 | 185.00 | 14.00 | 137 |
| 3-3/4 | 30 | 117 | 214.00 | 15.90 | 155 |
| 4 | 32 | 135 | 247.00 | 18.20 | 178 |
| 4-1/2 | 36 | 173 | 317.00 | 22.70 | 222 |
| 5 | 40 | 212 | 388.00 | 27.00 | 264 |
| 5-1/2 | 44 | 255 | 467.00 | 32.00 | 315 |
| 6 | 48 | 305 | 559.00 | 38.00 | 372 |
| 6-1/2 | 52 | 355 | 650.00 | 44.00 | 430 |
| 7 | 56 | 407 | 746.00 | 48.90 | 479 |
| 7-1/2 | 60 | 466 | 855.00 | 55.70 | 545 |
| ±5% tolerance according to ISO2307 | |||||
