LDMAXULTRA SBRMAX

All Products Print Page

LDMAXULTRA SBRMAX

UHMWPE Anti Snap Back Mooring Rope (Integrated SBR Core)

Double Braided UHMWPE Rope + 3-Strand Nylon Core

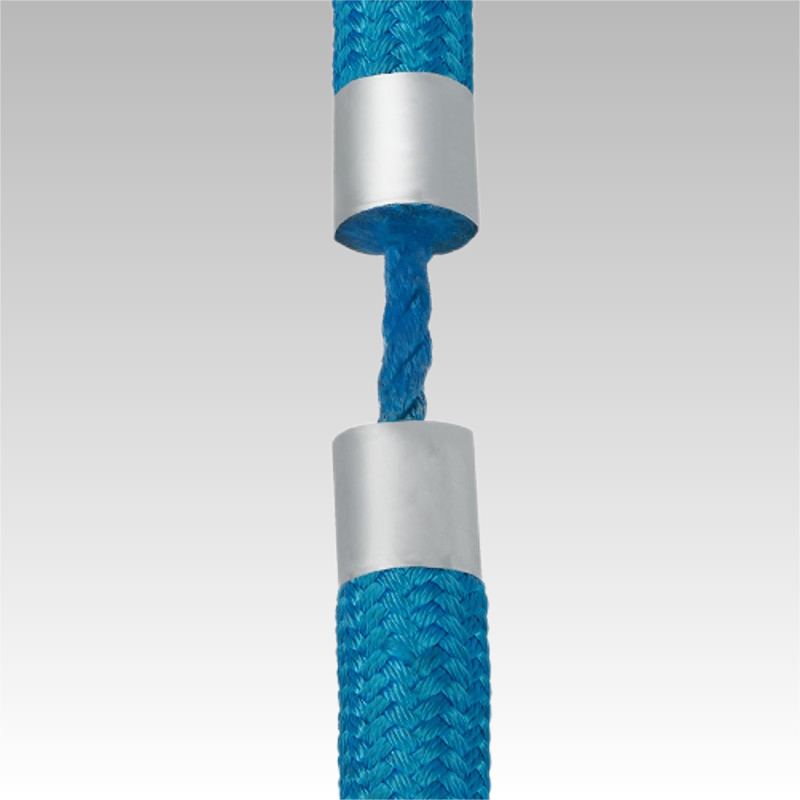

LDMAXULTRA SBRMAX is a double-braided UHMWPE mooring rope with an integrated anti-snap back core (3-strand nylon). It reduces recoil if broken — significantly improving crew safety. Features an ultra-wear-resistant jacket for demanding marine and industrial applications.

Double Braided + SBR Core

UHMWPE fibers with inner-braid SBR

Anti-Snap Back

Energy-absorbing core reduces recoil

High Strength-to-Weight

Lightweight & low stretch

Technical Specs

SG 0.97 | Elongation 3.5% | MP 150°C

Extreme Durability

Abrasion, UV & chemical resistant

Floating Rope

Naturally buoyant | Lightweight

LDMAXULTRA SBRMAX — Engineered for high-load mooring operations where safety is critical. The integrated anti-snap back core absorbs stored energy, reducing recoil if a break occurs. Double-braided UHMWPE construction delivers ultra-wear resistance, low stretch, and long-term reliability in demanding marine environments.

Product Code

384

Specific Gravity

0.97

Fiber (Core/cover)

Nylon/UHMWPE

Splice

Double braided

Anchor line/Lifting Slings/Mooring line/Shock line/Super sized commercial vessel/Slings/Tug&Towing line/Wire Rope Replacement

  • Double braided construction made with UHMWPE fibers,combined with an inner-braid SBR part
  • Integrated Anti-Snap Back rope — an energy-absorbing core within the rope.
  • Specific gravity：0.97g/cm³
  • Elongation：3.5%
  • Melting point：150℃
  • Reduces snap back if rope breaks
  • Ensures safe mooring activities
  • Low water absorption. Remains light when working in wet conditions
  • Lightweight and low stretch
  • High strength-to weight ratio
  • Excellent abrasion and UV resistance
  • Superior resistance to chemicals

SizeLineardensityWeightBreaking Strength
BS(YarnsT/S-42g/BS(YarnsT/S-33g/d)
Cir (inch)Dia(mm)ktex220m(kg)tonKNtonKN
3-1/228 490 116 76.20 748.00 57.50 562
4 32 621 148 91.20 895.00 68.50 671
4-1/236 767 182 107.30 1052.00 80.40 789
5 40 868 206 131.00 1285.00 98.20 964
5-1/244 955 227 157.00 1540.00 118.00 1158
6 48 1137 270 185.00 1815.00 139.00 1364
6-1/252 1342 295 212.00 2080.00 159.00 1560
7 56 1547 368 246.00 2408.00 184.00 1805
7-11260 1784 392 265.00 2599.00 199.00 1952
8 64 2021 480 296.00 2903.00 222.00 2178
9 72 2598 617 365.00 3580.00 274.00 2688
10 80 3195 773 444.00 4355.00 333.00 3266
11 88 4450 1060 519.00 5090.00 390.00 3825
12 96 5700 1350 606.00 5943.00 455.00 4463
13 104 7670 1688 695.00 6810.00 520.00 5096
±5% tolerance according to ISO2307
