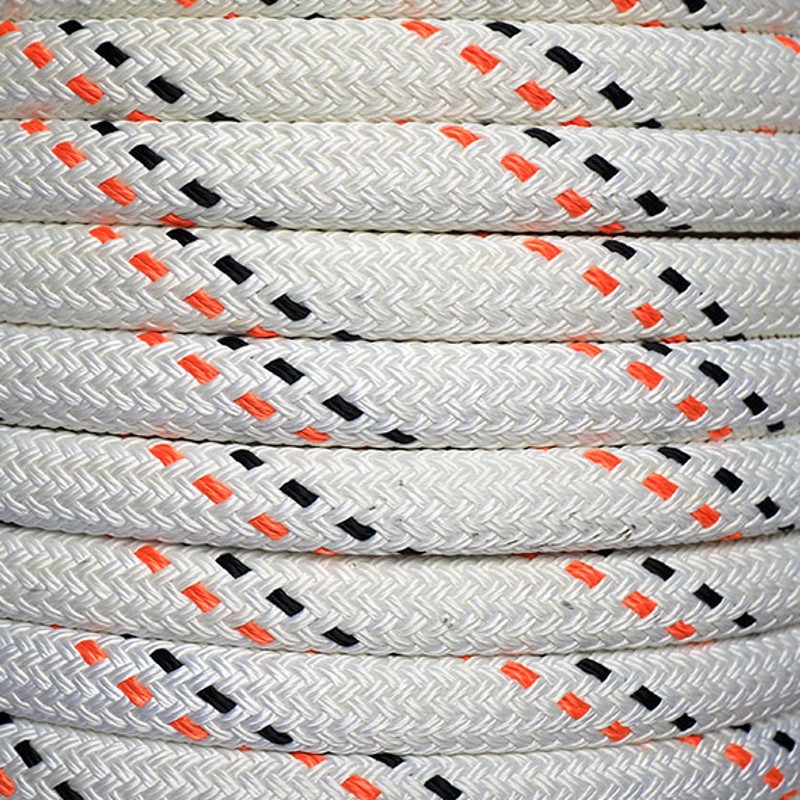

LDMAX PLUS is Polyester/UHMWPE double braided rope
LDMAX PLUS is a high-strength, UHMWPE Rope Plus with a polyester jacket. The durable jacket provides grip and protects the strength-member core from degradation. Lightweight UHMWPE core with High Tenacity Polyester cover provides high strength with minimal stretch.The core and jacket work together to prevent excess cover slack during mooring operations, which translates to dependable service.
Ultra High Molecular Weight Polyethylene (UHMWPE) Rope has very low stretch and superior wear resistance. Has very low torque, excellent UV protection, and is acid/alkali resistant. UHMWPE rope is comparable in strength to steel wire rope but weighs less and is flexible and easy to store.
LDMAX PLUS
Product Code
373
Specific Gravity
1.01~1.09
Fiber (Core/cover)
UHMWPE/Polyester
Splice
Double braided
| at Percent of break strength | ||
|---|---|---|
| 10% | 20% | 30% |
| Elastic Elongation | ||
| 0.68% | 0.98% | 1.45% |
Mooring and Towing Lines/Mooring line/Super sized commercial vessel/Tug&Towing line/Wire Rope Replacement
- Materiat: 12-strand UHMWPE ropes cover with high performance polyester braided cover
- Super-strength polyester woven fabric
- Specific gravity.1.01~1.09
- Elongation: 5% at break
- Melting point: 265℃/150℃
- Good resistance to UV and chemicals
- Superior abrasion resistance
- No diferencein tensile strength when wet or dry
| Size | Lineardensity | Weight | Breaking Strength | ||||
| BS(YarnsT/S-42g/ | BS(YarnsT/S-33g/d) | ||||||
| Cir (inch) | Dia(mm) | ktex | 220m(kg) | ton | KN | ton | KN |
| 3-1/2 | 28 | 490 | 116 | 76.20 | 748 | 57.50 | 562 |
| 4 | 32 | 621 | 148 | 91.20 | 895 | 68.50 | 671 |
| 4-1/2 | 36 | 767 | 182 | 107.30 | 1052.00 | 80.40 | 789 |
| 5 | 40 | 868 | 206 | 131.00 | 1285.00 | 98.20 | 964 |
| 5-1/2 | 44 | 955 | 227 | 157.00 | 1540.00 | 118.00 | 1158 |
| 6 | 48 | 1137 | 270 | 185.00 | 1815.00 | 139.00 | 1364 |
| 6-1/2 | 52 | 1342 | 295 | 212.00 | 2080.00 | 159.00 | 1560 |
| 7 | 56 | 1547 | 368 | 246.00 | 2408.00 | 184.00 | 1805 |
| 7-112 | 60 | 1784 | 392 | 265.00 | 2599.00 | 199.00 | 1952 |
| 8 | 64 | 2021 | 480 | 296.00 | 2903.00 | 222.00 | 2178 |
| 9 | 72 | 2598 | 617 | 365.00 | 3580.00 | 274.00 | 2688 |
| 10 | 80 | 3195 | 773 | 444.00 | 4355.00 | 333.00 | 3266 |
| 11 | 88 | 4450 | 1060 | 519.00 | 5090.00 | 390.00 | 3825 |
| 12 | 96 | 5700 | 1350 | 606.00 | 5943.00 | 455.00 | 4463 |
| 13 | 104 | 7670 | 1688 | 695.00 | 6810.00 | 520.00 | 5096 |
| ±5% tolerance according to ISO2307 | |||||||
