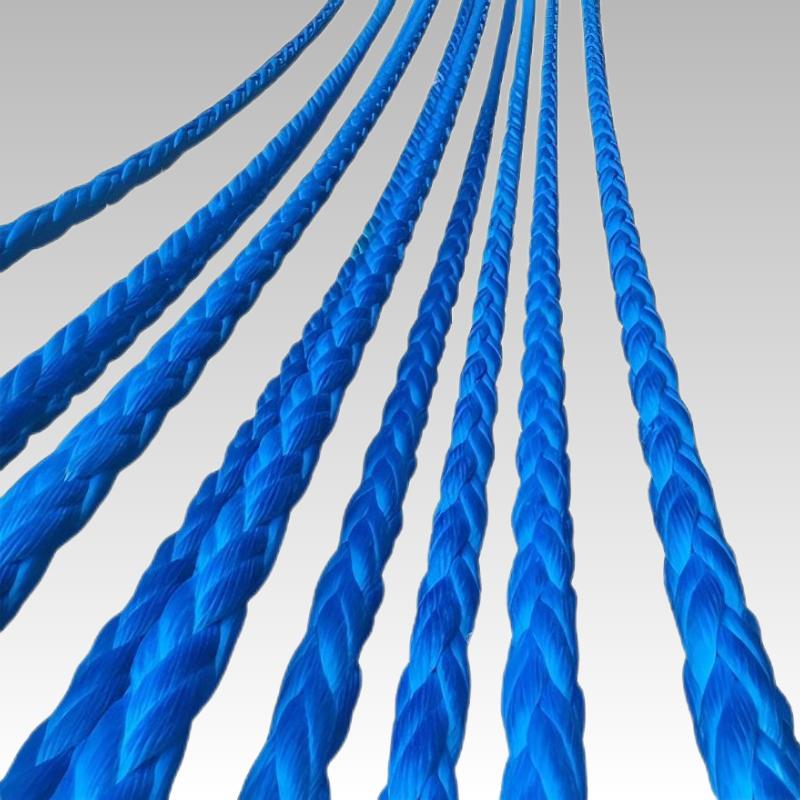

LDMAX®-8 is an 8-strand HMPE (UHMWPE) rope designed for marine, industrial, and recreational applications. Combining ultra-high strength, lightweight flexibility, and exceptional durability, it outperforms steel and nylon with a superior strength-to-weight ratio.
LDMAX-8
Product Code
371
Specific Gravity
0.97
Fiber (Core/cover)
UHMWPE
Splice
8-Strand
| at Percent of break strength | ||
|---|---|---|
| 10% | 20% | 30% |
| Elastic Elongation | ||
| 0.65% | 0.95% | 1.5% |
Mooring line/Super sized commercial vessel/Tug&Towing line/Wire Rope Replacement
- Materiat: UHMWPE yarns with special coating
- The strongest fiber rope in the world
- Equivalent MBL,the weight is 14% of the wire rope
- Specific gravity:0.97
- Elongation: 4% at break
- Melting point: 150℃
- Good resistance to UV and chemicals
- Superior abrasion resistance
- No diferencein tensile strength when wet or dry
- Workable below -20℃
| Size | Lineardensity | Weight | Breaking Strength | ||||
| BS(YarnsT/S-42g/ | BS(YarnsT/S-33g/d) | ||||||
| Cir (inch) | Dia(mm) | ktex | 220m(kg) | ton | KN | ton | KN |
| 3-1/2 | 28 | 445 | 100 | 76.20 | 748.00 | 52.20 | 562 |
| 4 | 32 | 575 | 130 | 91.20 | 895.00 | 68.50 | 671 |
| 4-1/2 | 36 | 720 | 162 | 107.30 | 1052.00 | 80.40 | 789 |
| 5 | 40 | 868 | 200 | 131.00 | 1285.00 | 98.20 | 964 |
| 5-1/2 | 44 | 955 | 215 | 157.00 | 1540.00 | 118.00 | 1158 |
| 6 | 48 | 1137 | 260 | 185.00 | 1815.00 | 139.00 | 1364 |
| 6-1/2 | 52 | 1342 | 300 | 212.00 | 2080.00 | 159.00 | 1560 |
| 7 | 56 | 1547 | 350 | 246.00 | 2408.00 | 184.00 | 1805 |
| 7-1/2 | 60 | 1784 | 400 | 265.00 | 2599.00 | 199.00 | 1952 |
| 8 | 64 | 2021 | 460 | 296.00 | 2903.00 | 222.00 | 2178 |
| 9 | 72 | 2598 | 590 | 365.00 | 3580.00 | 274.00 | 2688 |
| 10 | 80 | 3195 | 720 | 444.00 | 4355.00 | 333.00 | 3266 |
| 11 | 88 | 4170 | 940 | 519.00 | 5090.00 | 390.00 | 3825 |
| 12 | 96 | 4970 | 1120 | 606.00 | 5943.00 | 455.00 | 4463 |
| 13 | 104 | 5816 | 1310 | 695.00 | 6810.00 | 520.00 | 5096 |
| 14 | 112 | 6745 | 1520 | 783.00 | 7673.00 | 592.00 | 5800 |
| 15 | 120 | 7743 | 1750 | 924.00 | 9060.00 | 687.00 | 6730 |
| 16 | 128 | 8810 | 2000 | 1018.00 | 9980.00 | 779.00 | 7635 |
| 17 | 136 | 9945 | 2240 | 1122.00 | 11000.00 | 886.00 | 8682 |
| 18 | 144 | 11150 | 2520 | 1296.00 | 12700.00 | 1025.00 | 10045 |
| ±5% tolerance according to ISO2307 | |||||||
