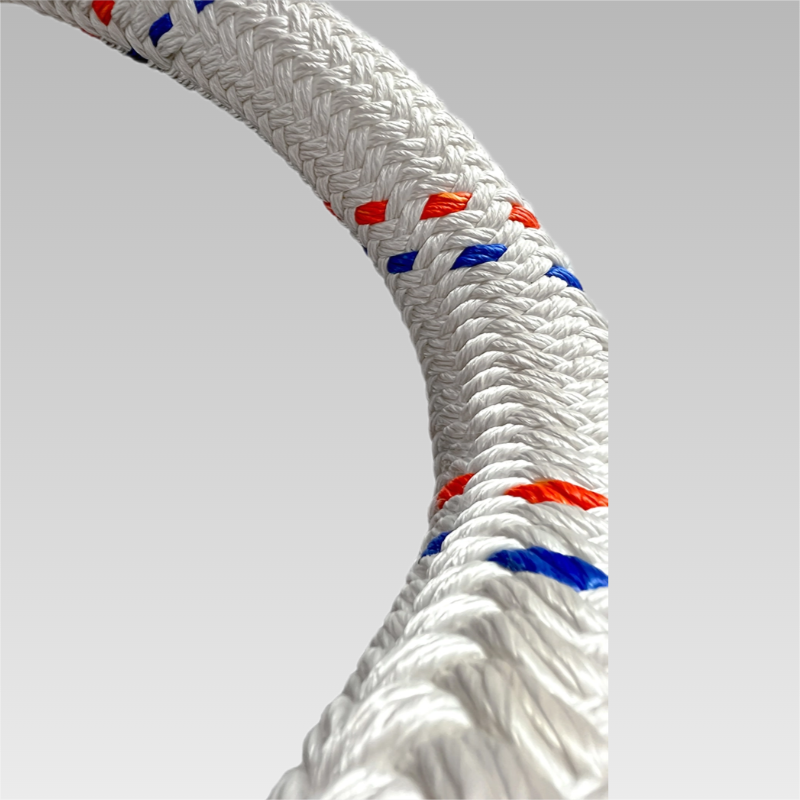

Polyester&Nylon(Polyamide)double braided rope
LDFLEX PLUS is a double braided rope combining a polyamide core and polyester cover. Delivers high strength, extreme abrasion resistance, and shock absorption for demanding applications.
LDFLEX PLUS
Product Code
272
Specific Gravity
1.20~1.26
Fiber (Core/cover)
Nylon/Polyester
Splice
Double braided
| at Percent of break strength | ||
|---|---|---|
| 10% | 20% | 30% |
| Elastic Elongation | ||
| 3.00% | 5.30% | 6.70% |
Mooring line/Other industrial heavy-duty use/Tug&Towing line
- Material:Mixture of high performance polyester and Nylon (polyamide fiber)
- Specific gravity:1.20~1.26
- Elongation:28% at break
- Melting point: 265℃/220℃
- Good resistance to chemicals and UV
- Excellent abrasion resistance
- Long durability
| Size | Weight | Breaking Strength | ||||
| Dia(inch) | Cir (inch) | Dia(mm) | 220m(kg) | 600ft(lb) | ton | KN |
| 1-1/8 | 3-1/2 | 28 | 130 | 238.00 | 20.00 | 198 |
| 1-5/16 | 4 | 32 | 172 | 315.00 | 27.50 | 269 |
| 1-7/16 | 4-1/2 | 36 | 201 | 368.00 | 33.50 | 328 |
| 1-5/8 | 5 | 40 | 265 | 485.00 | 41.50 | 407 |
| 1-3/4 | 5-1/2 | 44 | 320 | 586.00 | 50.00 | 490 |
| 1-15/16 | 6 | 48 | 384 | 703.00 | 60.00 | 585 |
| 2-1/8 | 6-1/2 | 52 | 448 | 821.00 | 69.00 | 678 |
| 2-1/4 | 7 | 56 | 520 | 953.00 | 77.00 | 755 |
| 2-3/8 | 7-112 | 60 | 600 | 1099.00 | 88.00 | 865 |
| 2-1/2 | 8 | 64 | 700 | 1282.00 | 99.00 | 972 |
| 2-7/8 | 9 | 72 | 884 | 1619.00 | 124.50 | 1220 |
| 3-1/4 | 10 | 80 | 1068 | 1957.00 | 148.00 | 1450 |
| 3-1/2 | 11 | 88 | 1295 | 2372.00 | 181.00 | 1772 |
| 3-3/4 | 12 | 96 | 1537 | 2816.00 | 212.00 | 2075 |
| 4-1/8 | 13 | 104 | 1785 | 3270.00 | 241.00 | 2358 |
| 4-1/2 | 14 | 112 | 2103 | 3853.00 | 283.00 | 2770 |
| 4-3/4 | 15 | 120 | 2413 | 4421.00 | 323.00 | 3170 |
| 5-1/8 | 16 | 128 | 2718 | 4979.00 | 365.00 | 3581 |
| 5-3/8 | 17 | 136 | 3000 | 5496.00 | 400.00 | 3920 |
| 5-11/16 | 18 | 144 | 3320 | 6082.00 | 429.00 | 4200 |
| ±5% tolerance according to ISO2307 | ||||||
