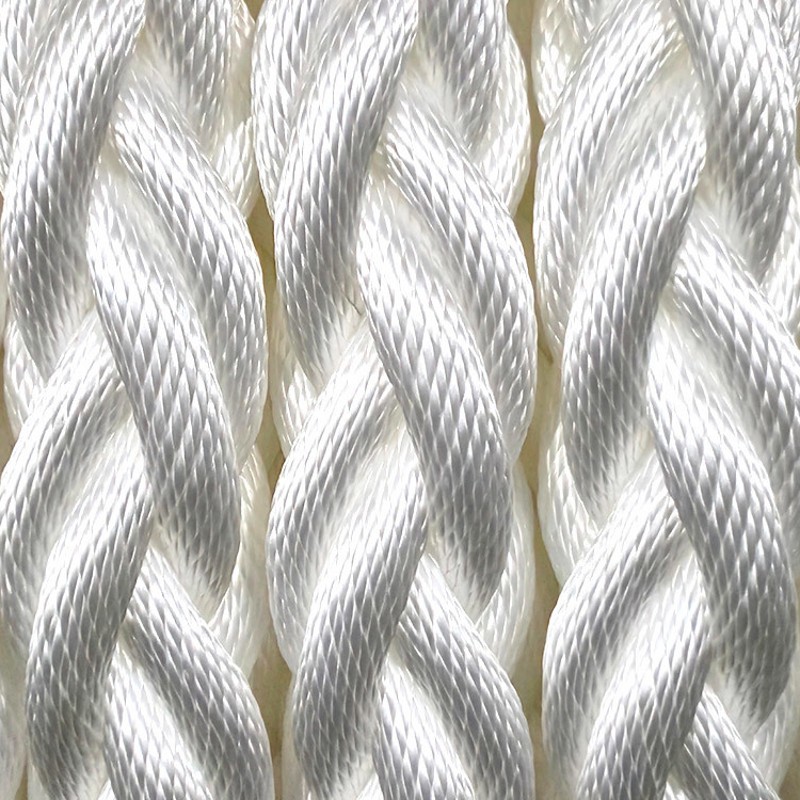

LDFLEX-8 8-Strand Braided Nylon Rope for Heavy-Duty Anchoring
LDFLEX-8 is a high-performance 8-strand nylon (polyamide) rope engineered for marine anchoring and mooring applications. This white rope excels as an anchor and mooring solution. Its design, with eight durable nylon fibers, creates a high – performance product renowned for strength and durability.
| at Percent of break strength | ||
|---|---|---|
| 10% | 20% | 30% |
| Elastic Elongation | ||
| 4.2% | 6.3% | 8.0% |
| Size | Weight | Breaking Strength | ||||
| Dia(inch) | Cir (inch) | Dia(mm) | 220m(kg) | 600ft(lb) | ton | KN |
| 1-1/8 | 3-1/2 | 28 | 107 | 196.00 | 18.00 | 177 |
| 1-5/16 | 4 | 32 | 139 | 255.00 | 27.00 | 226 |
| 1-7/16 | 4-1/2 | 36 | 176 | 322.00 | 29.00 | 285 |
| 1-5/8 | 5 | 40 | 218 | 399.00 | 35.00 | 345 |
| 1-3/4 | 5-1/2 | 44 | 264 | 484.00 | 42.00 | 412 |
| 1-15/16 | 6 | 48 | 321 | 588.00 | 48.60 | 476 |
| 2-1/8 | 6-1/2 | 52 | 365 | 669.00 | 56.80 | 556 |
| 2-1/4 | 7 | 56 | 425 | 779.00 | 64.00 | 628 |
| 2-3/8 | 7-1/2 | 60 | 486 | 890.00 | 72.00 | 708 |
| 2-1/2 | 8 | 64 | 554 | 1015.00 | 82.70 | 810 |
| 2-7/8 | 9 | 72 | 702 | 1286.00 | 102.00 | 1002 |
| 3-1/4 | 10 | 80 | 867 | 1588.00 | 125.00 | 1228 |
| 3-1/2 | 11 | 88 | 1049 | 1916.00 | 149.00 | 1452 |
| 3-3/4 | 12 | 96 | 1250 | 2290.00 | 173.00 | 1698 |
| 4-1/8 | 13 | 104 | 1465 | 2684.00 | 205.60 | 2015 |
| 4-1/2 | 14 | 112 | 1698 | 3111.00 | 225.50 | 2210 |
| 4-3/4 | 15 | 120 | 1950 | 3572.00 | 259.00 | 2530 |
| 5-1/8 | 16 | 128 | 2220 | 4067.00 | 297.00 | 2910 |
| 5-3/8 | 17 | 136 | 2510 | 4598.00 | 324.50 | 3180 |
| 5-11/16 | 18 | 144 | 2820 | 5166.00 | 364.00 | 3570 |
| 6 | 19 | 152 | 3146 | 5763.00 | 400.00 | 3920 |
| 6-3/10 | 20 | 160 | 3476 | 6361.00 | 437.00 | 4280 |
| ±5% tolerance according to ISO2307 | ||||||
