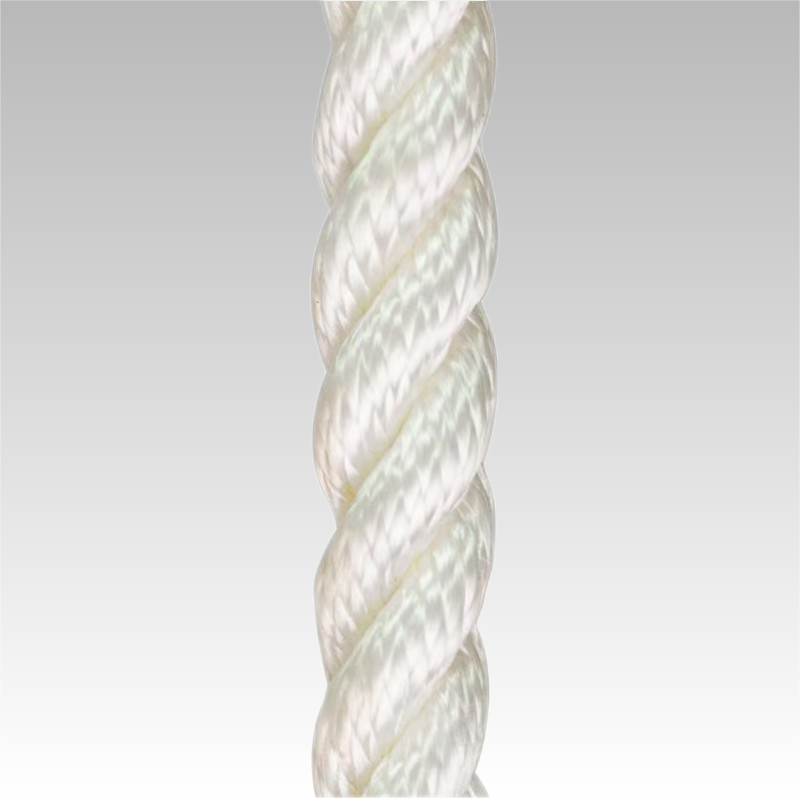

LDFLEX-3 is the 3-Strand Nylon Rope is a versatile and robust rope constructed from three strands of nylon fibers, offering a unique combination of properties that make it suitable for various applications.
LDFLEX-3
Product Code
170
Specific Gravity
1.14
Fiber (Core/cover)
Nylon
Splice
3-Strand
| at Percent of break strength | ||
|---|---|---|
| 10% | 20% | 30% |
| Elastic Elongation | ||
| 4.20% | 6.30% | 8.00% |
General industrial and marine use/Mooring line
- High tensile strength and good elasticity
- Specific gravity:1.14
- Elongation: 35% at break
- Melting point： 220℃
- Good resistance to chemicals and corrosion
- Excellent abrasion resistance
- Excellent shock absorption
- Usable in low temperature
| Size | Weight | Breaking Strength | |||
| Cir (inch) | Dia(mm) | 220m(kg) | 600ft(lb) | ton | KN |
| 1/2 | 4 | 2.1 | 3.90 | 0.35 | 3 |
| 3/4 | 6 | 5.0 | 9.00 | 0.82 | 8 |
| 1 | 8 | 9.0 | 16.50 | 1.43 | 14 |
| 1-1/4 | 10 | 13 | 24.00 | 2.25 | 22 |
| 1-1/2 | 12 | 19 | 35.00 | 3.30 | 32 |
| 1-3/4 | 14 | 25 | 46.00 | 4.40 | 43 |
| 2 | 16 | 33 | 61.00 | 5.70 | 56 |
| 2- 1/4 | 18 | 42 | 77.00 | 7.25 | 71 |
| 2- 1/2 | 20 | 51 | 93.50 | 8.90 | 87 |
| 2-3/4 | 22 | 62 | 114.00 | 10.70 | 105 |
| 3 | 24 | 75 | 138.00 | 12.90 | 126 |
| 3-1/4 | 26 | 90 | 165.00 | 14.90 | 146 |
| 3-1/2 | 28 | 105 | 192.00 | 17.00 | 166 |
| 3-3/4 | 30 | 123 | 225.00 | 19.20 | 188 |
| 4 | 32 | 140 | 257.00 | 22.00 | 215 |
| 4- 1/2 | 36 | 180 | 330.00 | 27.50 | 269 |
| 5 | 40 | 220 | 403.00 | 32.70 | 320 |
| 5-1/2 | 44 | 265 | 485.00 | 38.80 | 380 |
| 6 | 48 | 315 | 577.00 | 46.00 | 450 |
| 6- 1/2 | 52 | 370 | 678.00 | 53.00 | 520 |
| 7 | 56 | 425 | 779.00 | 59.20 | 580 |
| 7-1/2 | 60 | 491 | 900.00 | 67.00 | 658 |
| ±5% tolerance according to ISO2307 | |||||
