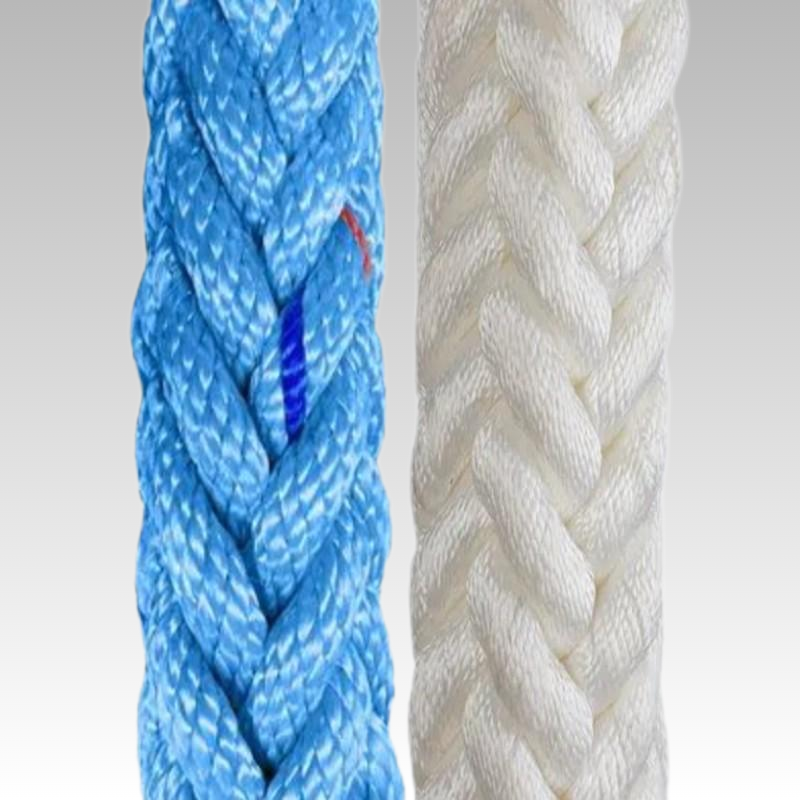

LDFLEX-12 Nylon is a 12-strand polyamide (nylon) rope. It features high strength, outstanding shock absorption, and remarkable wear resistance. Its excellent flexibility eases splicing, reduces system stress, boosts overall safety, and ensures a long service life.
LDFLEX-12
Product Code
230
Specific Gravity
1.14
Fiber (Core/cover)
Nylon
Splice
12-Strand
| at Percent of break strength | ||
|---|---|---|
| 10% | 20% | 30% |
| Elastic Elongation | ||
| 4.3% | 6.4% | 8.1% |
Mooring line/Offshore/Other industrial heavy-duty use/Tug&Towing line
- High tensile strength and good elasticity
- Specific gravity:1.14
- Elongation: 35% at break
- Melting point:220℃
- Good resistance to chemicals and corrosion
- Excellent abrasion resistance
- Excellent shock absorption
| Size | Weight | Breaking Strength | ||||
| Dia(inch) | Cir (inch) | Dia(mm) | 220m(kg) | 600ft(lb) | ton | KN |
| 1-1/8 | 3-1/2 | 28 | 103 | 189.00 | 19.00 | 188 |
| 1-5/16 | 4 | 32 | 136 | 249.00 | 24.60 | 241 |
| 1-7/16 | 4-1/2 | 36 | 175 | 321.00 | 30.70 | 301 |
| 1-5/8 | 5 | 40 | 215 | 394.00 | 36.50 | 358 |
| 1-3/4 | 5-1/2 | 44 | 258 | 473.00 | 43.50 | 426 |
| 1-15/16 | 6 | 48 | 305 | 559.00 | 51.50 | 504 |
| 2-1/8 | 6-1/2 | 52 | 360 | 660.00 | 59.40 | 582 |
| 2-1/4 | 7 | 56 | 420 | 769.00 | 66.00 | 650 |
| 2-3/8 | 7-1/2 | 60 | 480 | 879.00 | 75.00 | 736 |
| 2-1/2 | 8 | 64 | 545 | 998.00 | 84.50 | 828 |
| 2-7/8 | 9 | 72 | 690 | 1264.00 | 105.00 | 1030 |
| 3-1/4 | 10 | 80 | 850 | 1557.00 | 128.60 | 1264 |
| 3-1/2 | 11 | 88 | 1030 | 1887.00 | 160.00 | 1568 |
| 3-3/4 | 12 | 96 | 1220 | 2235.00 | 185.00 | 1815 |
| 4-1/8 | 13 | 104 | 1440 | 2638.00 | 221.00 | 2168 |
| 4-1/2 | 14 | 112 | 1670 | 3059.00 | 251.00 | 2464 |
| 4-3/4 | 15 | 120 | 1930 | 3636.00 | 288.00 | 2826 |
| 5-1/8 | 16 | 128 | 2200 | 4030.00 | 333.00 | 3260 |
| 5-3/8 | 17 | 136 | 2480 | 4543.00 | 364.00 | 3568 |
| 5-11/16 | 18 | 144 | 2780 | 5093.00 | 403.00 | 3950 |
| 6 | 19 | 152 | 3100 | 5679.00 | 447.00 | 4380 |
| 6-3/10 | 20 | 160 | 3420 | 6265.00 | 478.00 | 4680 |
| ±5% tolerance according to ISO2307 | ||||||
